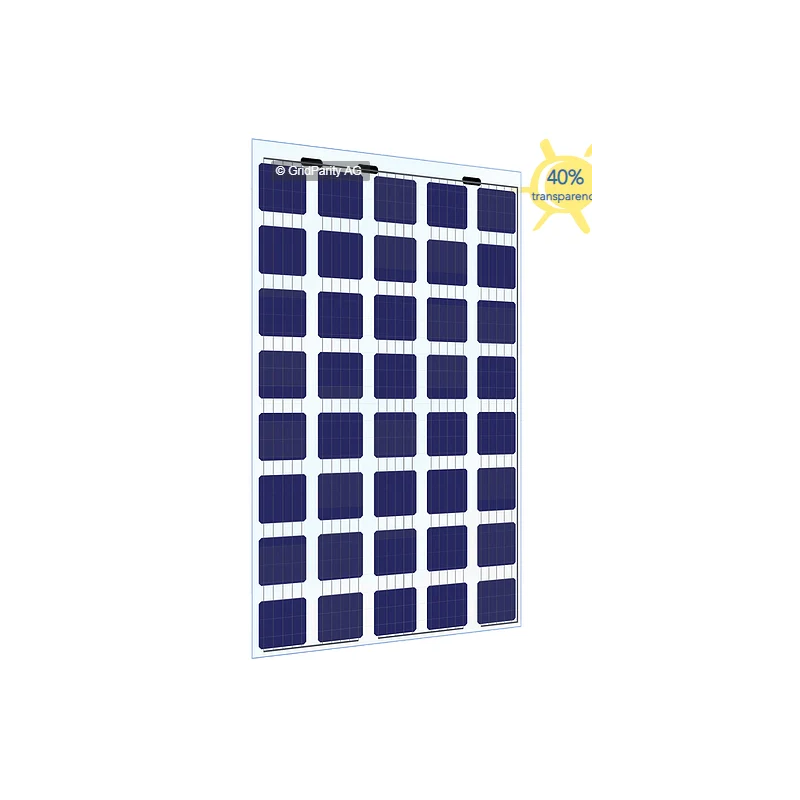

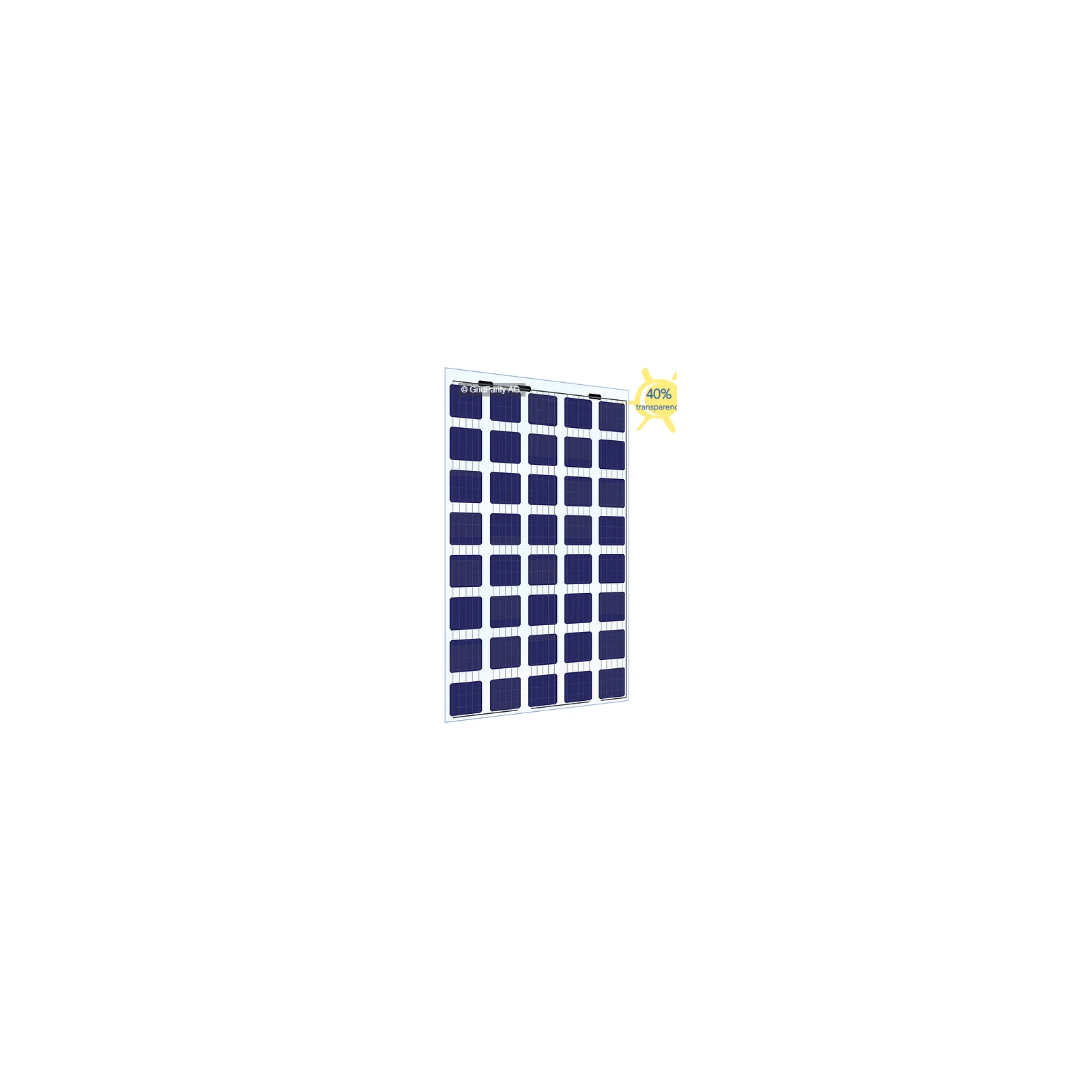

GridParity M40 210 Wp Glass PV Module 40% Transparency (1662 mm x 990 mm x 5 mm)

189,00 €
incl. 0% VAT, plus shipping costs


Certification: Grid Parity modules are certified according to EN12600 for overhead installation.


Alternatively, GridParity B45/6 or Kioto Glas40 modules are in stock!

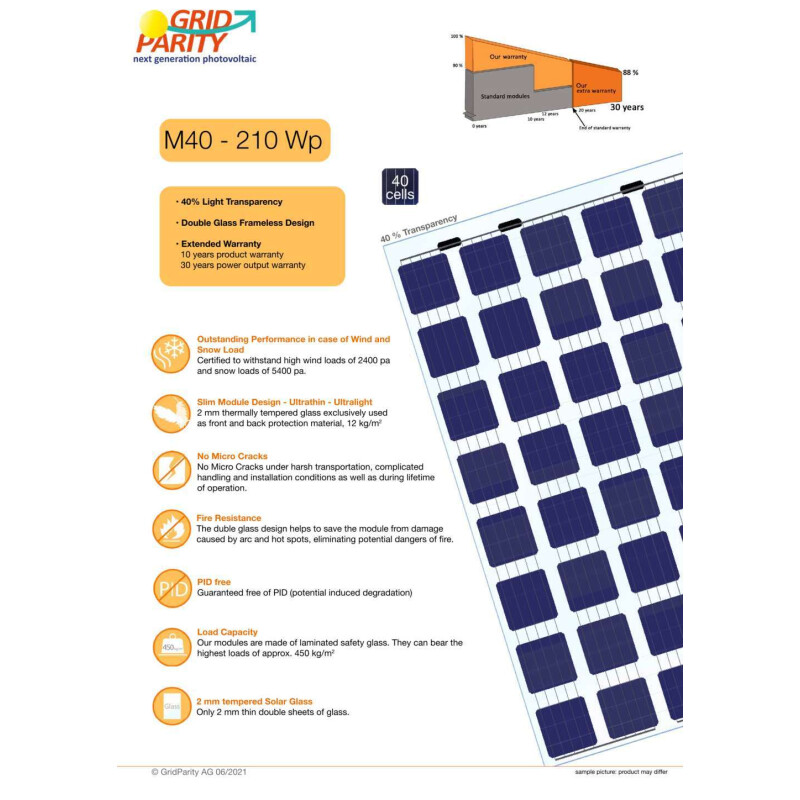

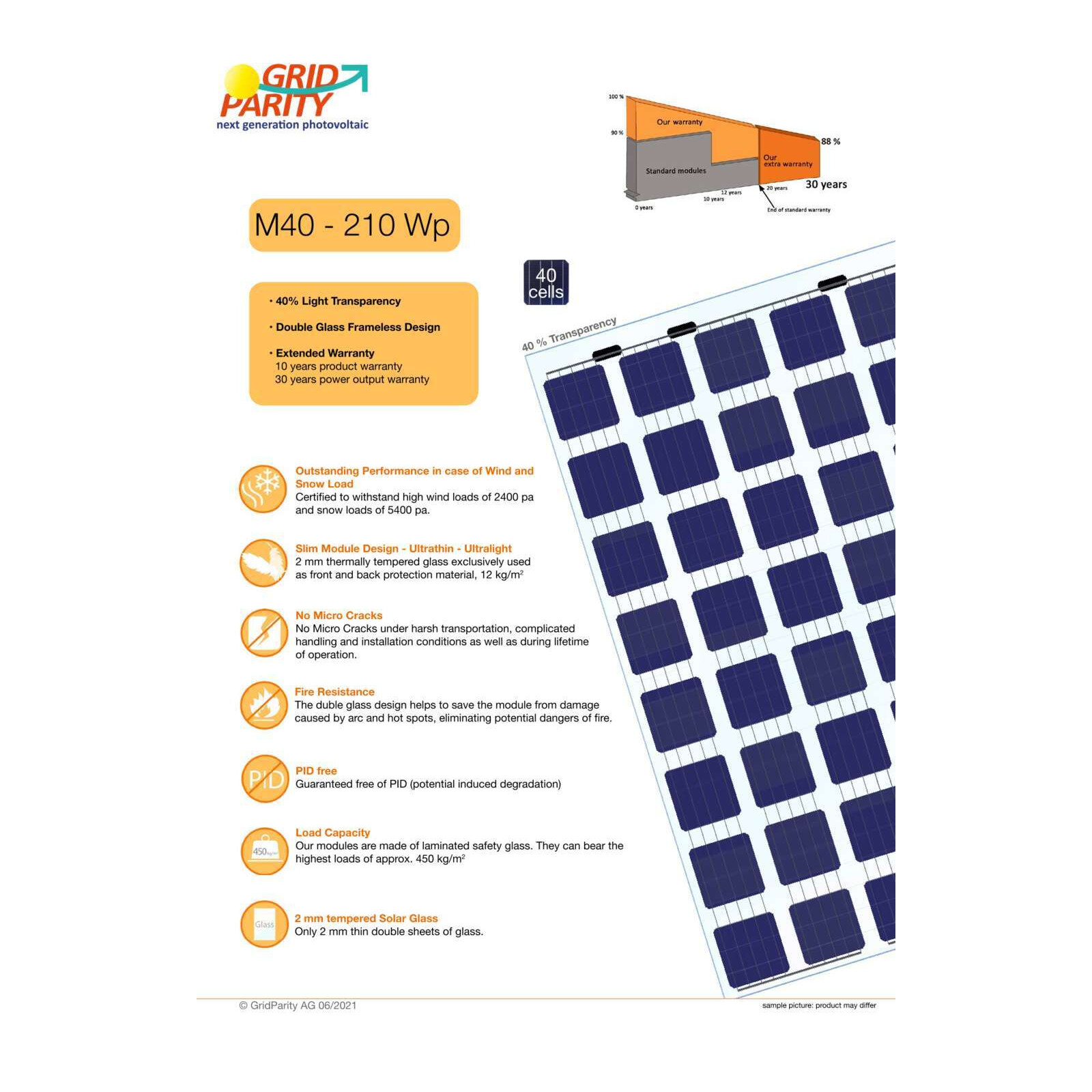

Slim module design - Ultra-thin - Ultra-light
No frame, no backsheet. Two glass panes made of 2mm thermally tempered glass.

Excellent wind / snow load properties
Certified for high wind loads of 2400 Pa and snow loads of 5400 Pa.

Free from microcracks
The special lamination process of the 2 glass panes guarantees that no microcracks occur during harsh transport, handling and installation conditions or throughout the entire service life of the modules.

Extreme fire resistance
The glass-glass design protects the module against arc and hot spot damage, thereby eliminating potential fire hazards.

Load-bearing capacity
Tempered safety glass allows loads of approx. 450 kg/m².
PID free
Freedom from PID (potential-induced degradation) is guaranteed.




22 In stock
Delivery time: 14 Workdays

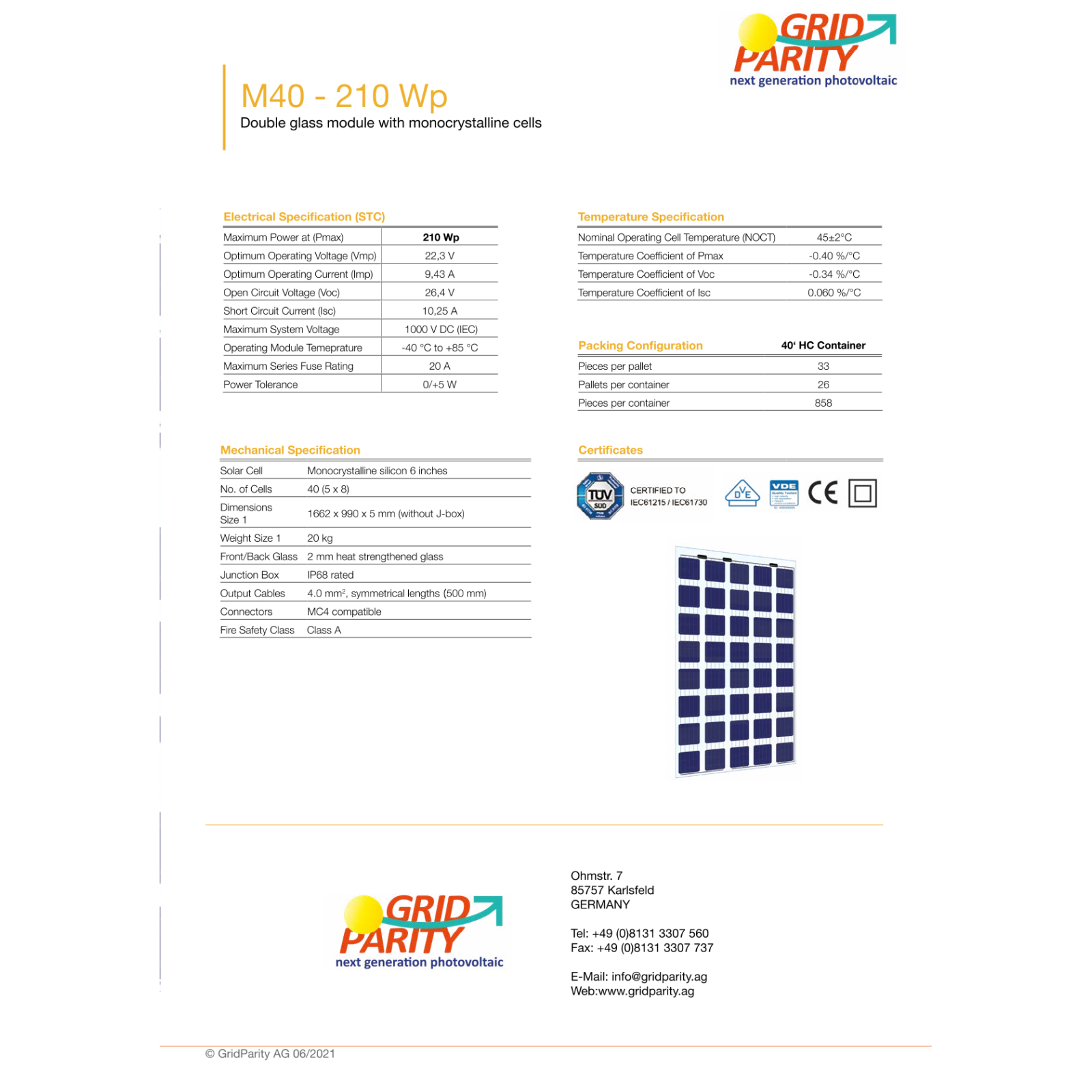

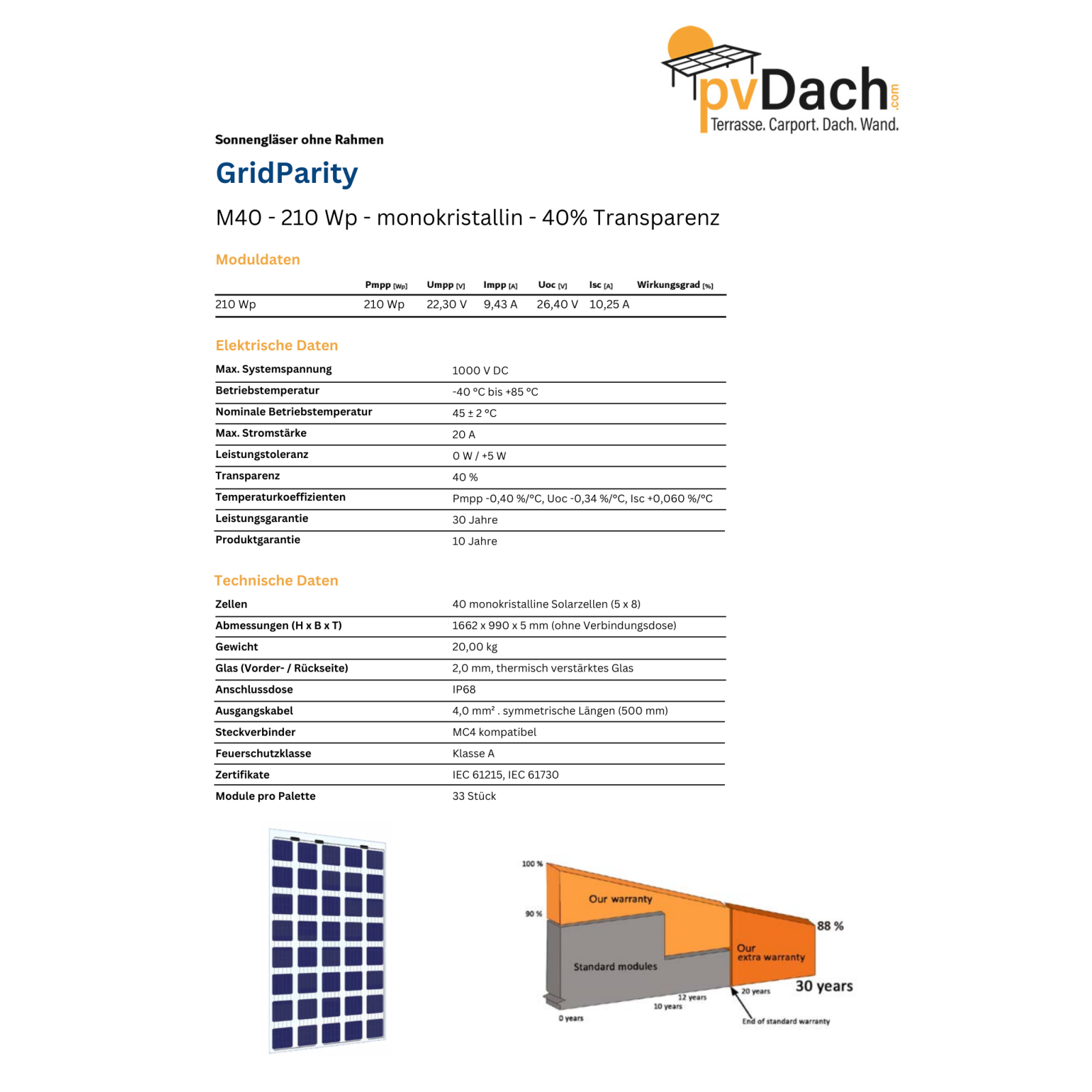

Electrical specifications (STC)
Maximum power (Pmax): 210 Wp
Optimum operating voltage (Vmp): 22.3 V
Optimum operating current (Imp): 9.43 A
Open-circuit voltage (Voc): 26.4 V
Short-circuit current (Isc): 10.25 A
Maximum system voltage: 1000 V DC (IEC)
Module operating temperature: -40°C to +85°C
Maximum permissible series fuse: 20A
Power tolerance: 0/+5 W


Temperature specifications
Nominal operating cell temperature (NOCT): 45+-2°C
Temperature coefficient of Pmax: -0.40 %/°C
Temperature coefficient of Voc: -0.34 %/°C
Temperature coefficient of Isc: 0.060 %/°C

Mechanical specifications
Solar cell: Monocrystalline cells
Number of cells: 40 (5 x 8)
Dimensions: 1662 mm x 990 mm x 5 mm (without junction box)
Weight: 20 kg
Front/rear: 2 mm thermally tempered glass
Junction box: Protection class IP68 (three bypass diodes)
Output cable: 4.0 mm², symmetrical lengths (approx. 500 mm)
Connector: MC4 compatible
Fire safety: Class C

Pack configuration
Quantity per pallet: 33 pieces
